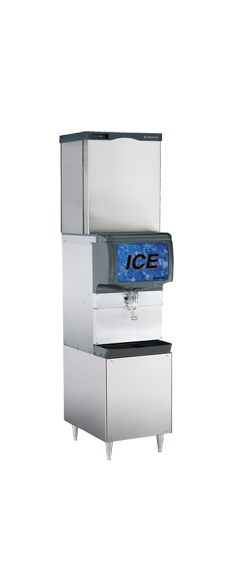

The EH222 PRODIGY® ECLIPSE® 800 Remote Low Side Cuber Ice Machine
Overview
Convenient, Dependable Performance
The classic cuber ice machine is a best seller for Scotsman Ice Systems. Perfect for mixed drinks, carbonated beverages, ice displays and ice retailing in all types of operations. Explore ice cuber machines for your restaurant, convenience store, hotel or other establishment.
The small footprint and narrow profile of the Eclipse ice machines offer the ability to place the ice machine at the drive-through window, self-service beverage station or anywhere a high-capacity ice source is needed that won’t interfere with its surroundings.
Energy Efficiency:
Remote-cooled model is ENERGY STAR ® qualified. Save up to an estimated $319 annually as calculated via Food Service Technology Center (www.fishnick.com).
Features :
● New energy efficient, one piece remote condenser design.
● Equipped with Prodigy® self-monitoring technology AutoAlert™ indicator lights, patented WaterSense adaptive purge control as well as Prodigy’s superior cost-saving energy efficiency.
● Eclipse® technology moves the compressor and condenser to the roof, moving noise and heat away from customers & workers, resulting in a quieter environment.
● The small footprint and narrow profile offer the ability to place the ice machine where ice is needed, at the drive through window or in the dining room at a self-service beverage station.
● Flexible design allows Eclipse® ice machines to be paired with a wide variety of dispensers or storage bins, supplying ice to any area of your operation.
● Includes ultrasonic bin level control for optimized ice management.
Technical Specifications*:
● 24 hr production: 850 lb @ 70/50, 700 lb @ 90/70
● Dimensions: 22″ W x 16.5″ D x 29″ H
● Shipping Carton: 25.5″ W x 19.5″ D x 34″ H
● Shipping Weight: 110 lb
● Available Condenser Options: Remote
Energy & Water Usage:
● Energy Consumption: 5.2 kWh/100 lb
● Water Usage: 18.0 gallons/100 lb
Electrical:
● Base Electrical Ice Head, Volts/Hz/Phase: 115/60/1
● Base Electrical Condensing Unit Volts/Hz/Phase: 208-230/60/1
● BTU Per Hour: 13,700
● Max. Fuse Size Ice Head: 15 amps
● Max. Fuse Size Compressor: 20 amps
● Circuit Wires: 2
● Min. Circuit Ampacity Ice Head: Cord
● Min. Circuit Ampacity Condensing Unit: 14.8
*Technical specs are based on remote-cooled model single phase.
